The John Deere 4052R Compact Utility Tractor is a premium compact tractor engineered for demanding property maintenance, landscaping, turf management and light agricultural operations. As a flagship model in the John Deere 4R Series, the 4052R combines powerful diesel performance, advanced hydrostatic transmission technology and premium operator comfort features to deliver professional-grade productivity in a compact and manoeuvrable platform.

Powered by a turbocharged 4-cylinder Yanmar diesel engine, the 4052R delivers strong torque and reliable performance across a wide range of tasks including loader work, mowing, ground preparation and material handling. Its robust four-wheel-drive drivetrain, high-capacity hydraulic system and wide attachment compatibility allow it to perform tasks normally associated with larger utility tractors while maintaining the agility of a compact machine.

---

Key Features

Powerful Turbocharged Diesel Engine

The 4052R is equipped with a 2.1 L Yanmar 4-cylinder turbocharged diesel engine producing 50.8 hp (37.9 kW) at 2,600 rpm. The engine uses high-pressure common-rail fuel injection for improved efficiency, smoother power delivery and reduced emissions.

Advanced eHydro™ Transmission

The tractor features John Deere’s eHydro™ hydrostatic transmission, offering infinitely variable speed control with three operating ranges. Twin-Touch™ pedals allow smooth forward and reverse operation, making loader work and manoeuvring around obstacles easier and more efficient.

Intelligent Electronic Features

The 4052R includes advanced electronic performance management systems such as:

• LoadMatch™ – Maintains engine power under heavy loads

• MotionMatch™ – Adjusts deceleration characteristics

• SpeedMatch™ – Allows operators to set maximum travel speed

• Cruise control – Improves comfort during long working sessions

These systems enhance productivity while making the tractor easier to operate.

Standard Four-Wheel Drive (MFWD)

Mechanical front-wheel drive provides excellent traction on slopes, wet ground and uneven terrain. A rear differential lock further improves traction when working in difficult conditions.

High-Capacity Hydraulic System

The 4052R features an open-centre hydraulic system designed for strong implement performance:

• Steering hydraulic flow: 23.5 L/min

• Implement hydraulic flow: 42.3 L/min

• Total hydraulic flow: 65.8 L/min

This powerful hydraulic capability allows efficient operation of loaders, grapples, mowers and other hydraulic attachments.

Category 1 Three-Point Hitch

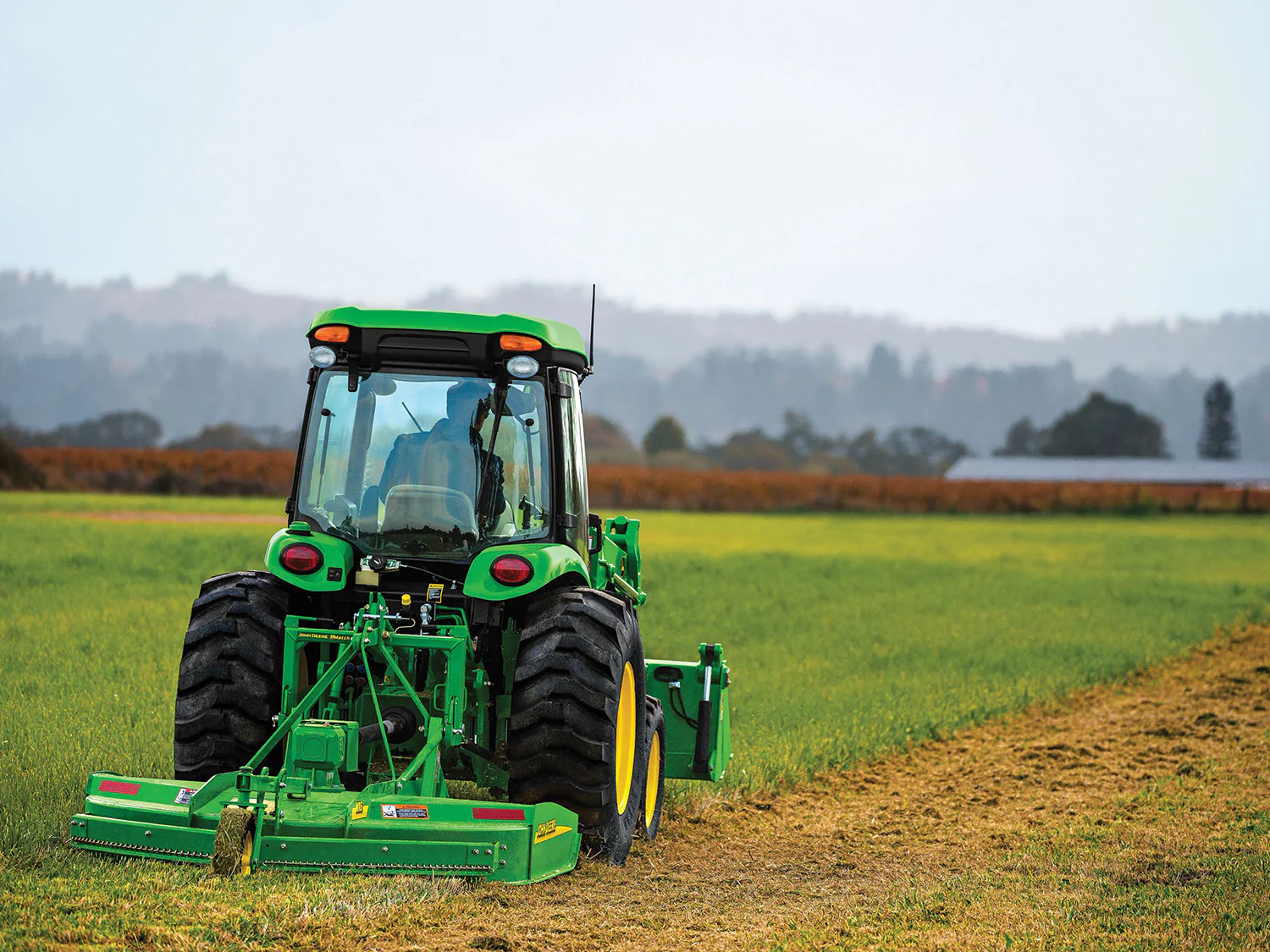

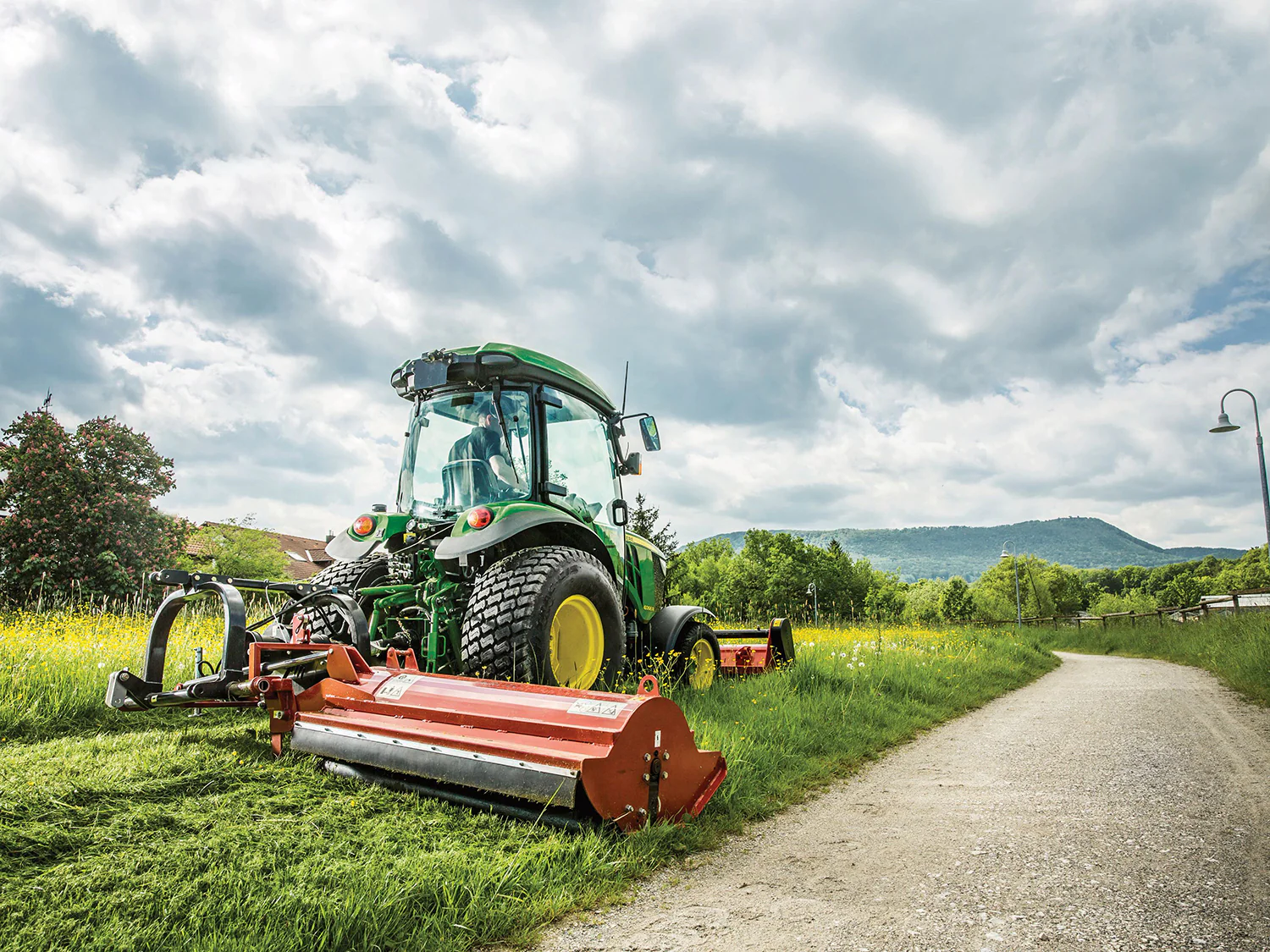

A Category 1 three-point linkage with position control allows the tractor to operate a wide range of rear implements such as flail mowers, sprayers, rotavators and seeders. The hitch provides a lift capacity of approximately 1,135 kg at 610 mm behind the link arms, making it suitable for heavier compact tractor implements.

Independent Rear PTO

The tractor features an independent 540 rpm rear PTO capable of delivering approximately 39–41 hp of PTO power, allowing efficient operation of PTO-driven implements such as mowers, tillers and sweepers.

Premium Operator Comfort

The 4052R is designed for extended working hours with a comfortable and ergonomic operator station. Features include:

• Deluxe air-suspension seat with swivel function

• Tilt steering wheel

• Integrated digital display

• Flat operator platform

• Optional ComfortGard™ cab with heating and air conditioning

These features improve operator comfort and productivity during long working days.

Wide Range of Attachment Compatibility

The tractor can be equipped with numerous attachments and implements, including:

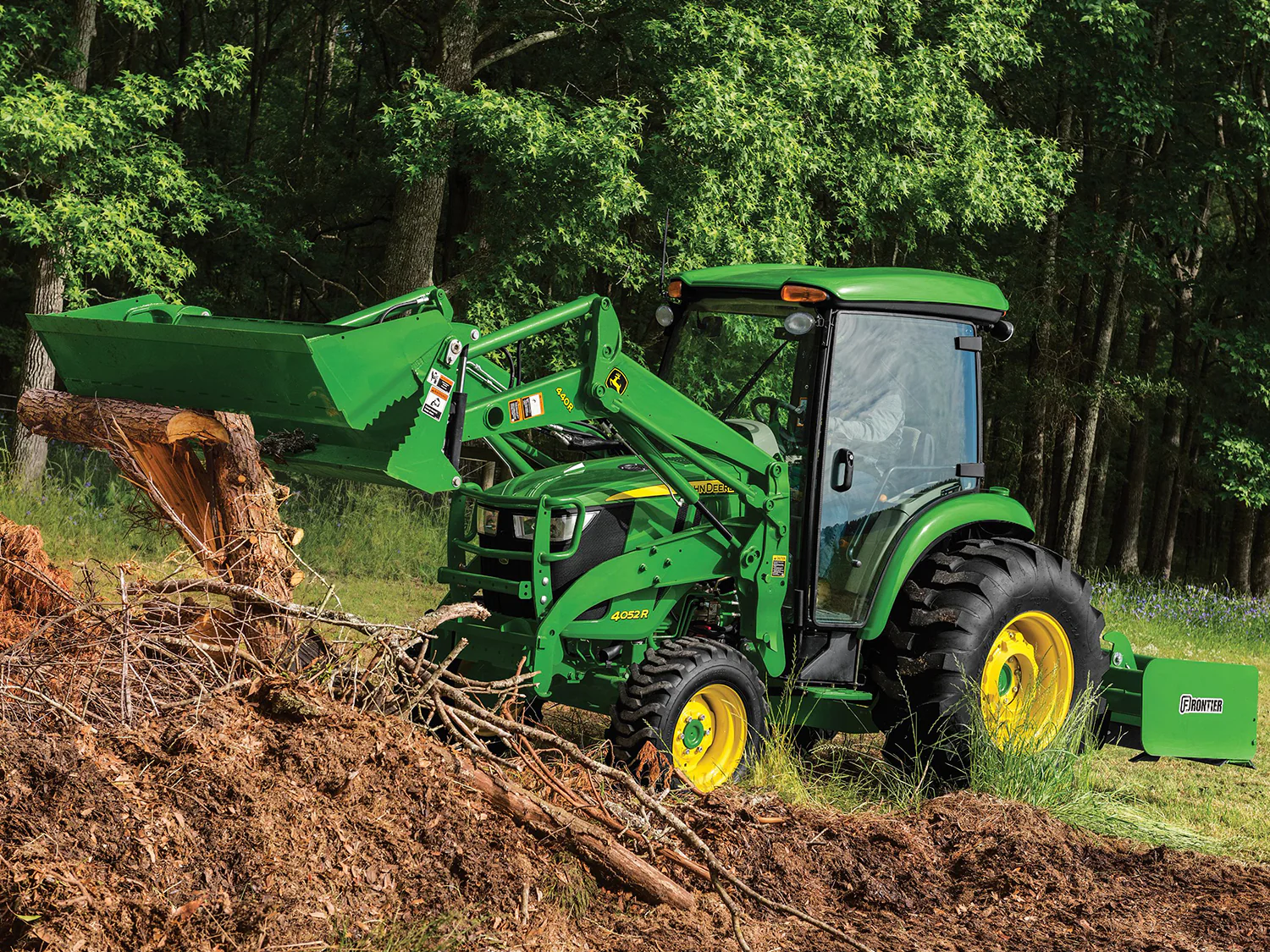

• 440R front loader

• Mid-mounted mower decks

• Rotary brooms and snow blowers

• Front blades and grapples

• Rear PTO implements such as flail mowers, rotavators and sprayers

This flexibility allows the 4052R to perform a wide variety of tasks throughout the year.

---

Ideal Applications

The John Deere 4052R Compact Utility Tractor is ideal for professional and large-property users, including:

• Estate and property maintenance

• Landscaping and groundskeeping

• Turf and pasture management

• Loader work and material handling

• Small-scale agricultural operations

• Winter maintenance and snow clearing

Its balance of power, hydraulic performance and compact dimensions makes it suitable for both commercial and large-property users.

---

Product Specifications

• Product Type: Compact Utility Tractor

• Model: John Deere 4052R

• Engine Manufacturer: Yanmar

• Engine Type: Turbocharged 4-cylinder diesel

• Engine Displacement: 2.1 L

• Engine Power: 50.8 hp (37.9 kW) at 2,600 rpm

• PTO Power: Approx. 39–41 hp

• Transmission: eHydro™ hydrostatic or 12/12 PowrReverser™ transmission

• Drive System: Mechanical front-wheel drive (4WD)

• Hydraulic System: Open-centre

• Total Hydraulic Flow: Approx. 65.8 L/min

• Rear Hitch Type: Category 1 three-point linkage

• Rear Lift Capacity: Approx. 1,135 kg at 610 mm behind link arms

• PTO Type: Independent rear PTO (540 rpm)

• Wheelbase: 1,855 mm

• Operating Weight:

  • Open station: approx. 1,710 kg

  • Cab version: approx. 2,120 kg

---

Why Choose the John Deere 4052R

The John Deere 4052R Compact Utility Tractor is designed for users who require a powerful, highly capable and comfortable compact tractor. Its turbocharged diesel engine, advanced hydrostatic transmission and high-capacity hydraulic system enable it to operate demanding implements while maintaining excellent manoeuvrability.

With premium operator features, strong lifting capacity and compatibility with a wide range of attachments, the 4052R provides professional-grade performance for estates, contractors and grounds maintenance professionals who require reliable productivity across multiple tasks.
