The John Deere 4052M Compact Utility Tractor is a powerful and versatile machine designed for demanding property maintenance, landscaping and agricultural tasks. As part of the John Deere 4M Series, the 4052M combines strong diesel performance, heavy-duty hydraulics and robust construction to deliver productivity typically associated with larger utility tractors while maintaining the manoeuvrability of a compact platform.

Powered by a turbocharged 4-cylinder Yanmar diesel engine, the 4052M offers strong torque, efficient fuel consumption and dependable performance in a wide range of applications. Its rugged four-wheel-drive system, powerful hydraulic capabilities and compatibility with numerous attachments make it ideal for professional contractors, estates and agricultural users.

---

Key Features

Powerful Turbocharged Diesel Engine

The 4052M is equipped with a 2.1 L Yanmar 4-cylinder turbocharged diesel engine producing approximately 50.8 hp (37.9 kW) at 2,600 rpm. The engine features high-pressure common-rail fuel injection and liquid cooling, providing strong torque, efficient fuel use and reliable operation in demanding conditions.

Transmission Options for Versatility

The tractor is available with two transmission configurations:

• PowrReverser™ transmission for efficient directional changes during loader work

• eHydro™ hydrostatic transmission for smooth, infinitely variable speed control

Both systems allow precise control and ease of operation when performing tasks such as mowing, loading and landscaping.

Standard Four-Wheel Drive

A mechanical front-wheel-drive (MFWD) system provides excellent traction across wet ground, slopes and uneven terrain. Combined with a rear differential lock, the tractor maintains stability and pulling power in challenging conditions.

High-Performance Hydraulic System

The 4052M features an open-centre hydraulic system designed to power loaders and hydraulic attachments efficiently.

Hydraulic performance includes:

• Steering flow: 23.5 L/min

• Implement flow: 42.3 L/min

• Total hydraulic flow: 65.8 L/min

This strong hydraulic capacity ensures responsive operation of loaders, grapples and other implements.

Category 1 Three-Point Hitch

The rear linkage is a Category 1 three-point hitch with position control, offering a lift capacity of approximately 1,135 kg at 610 mm behind the link arms. This allows the tractor to operate a wide range of rear implements including flail mowers, sprayers, rotavators and seeders.

Independent Rear PTO

The tractor features an independent 540 rpm rear PTO, delivering approximately 39–41 hp of PTO power depending on transmission configuration. This enables efficient operation of PTO-driven equipment such as mowers, tillers and sweepers.

Heavy-Duty Frame and Chassis

The 4052M is designed with a reinforced frame and robust drivetrain components for demanding work environments. The tractor offers a wheelbase of approximately 185 cm and an operating weight of around 1,700 kg, providing stability and durability when using heavy attachments.

Attachment Compatibility

The 4052M can be equipped with a wide range of attachments and implements, including:

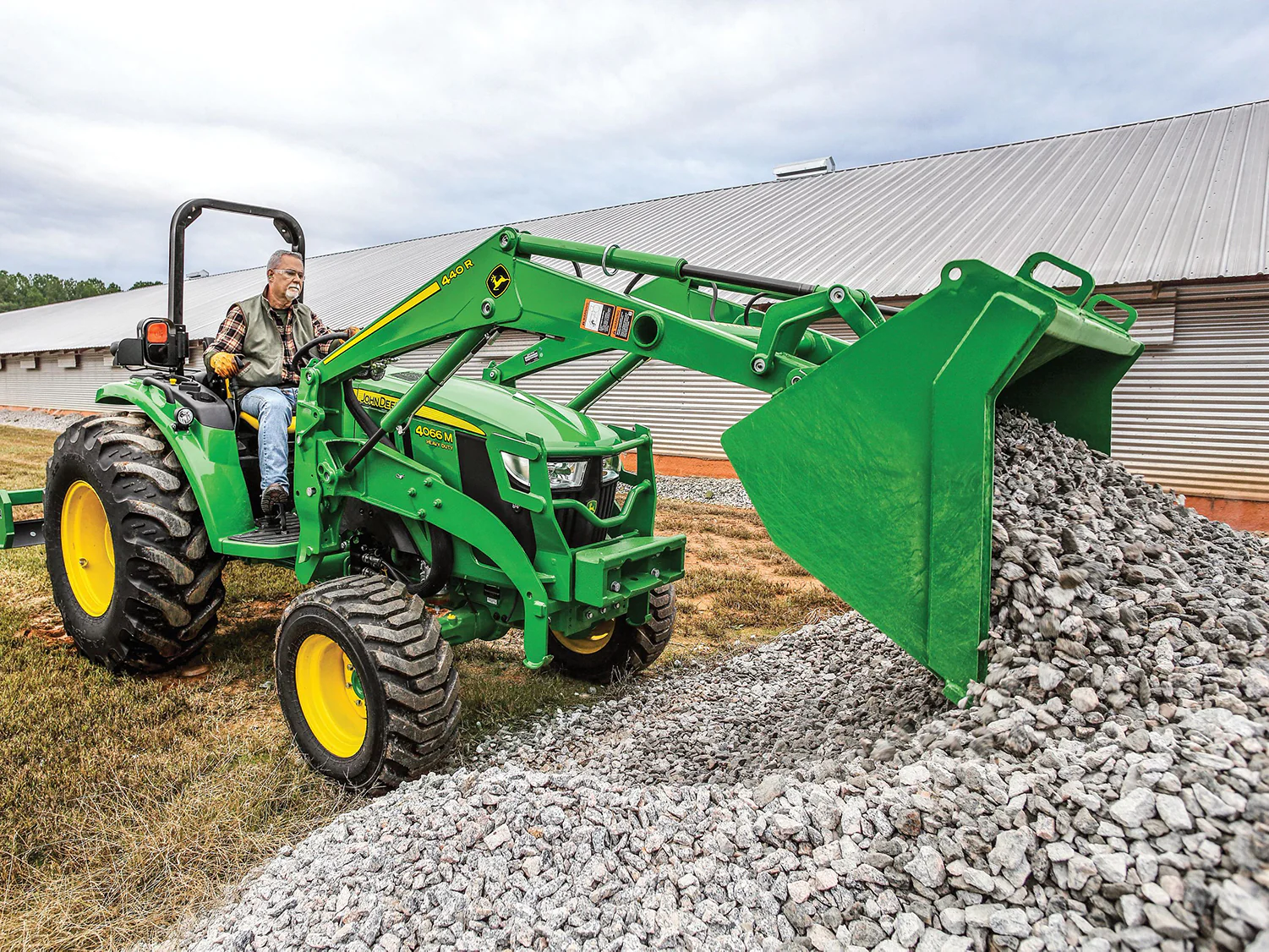

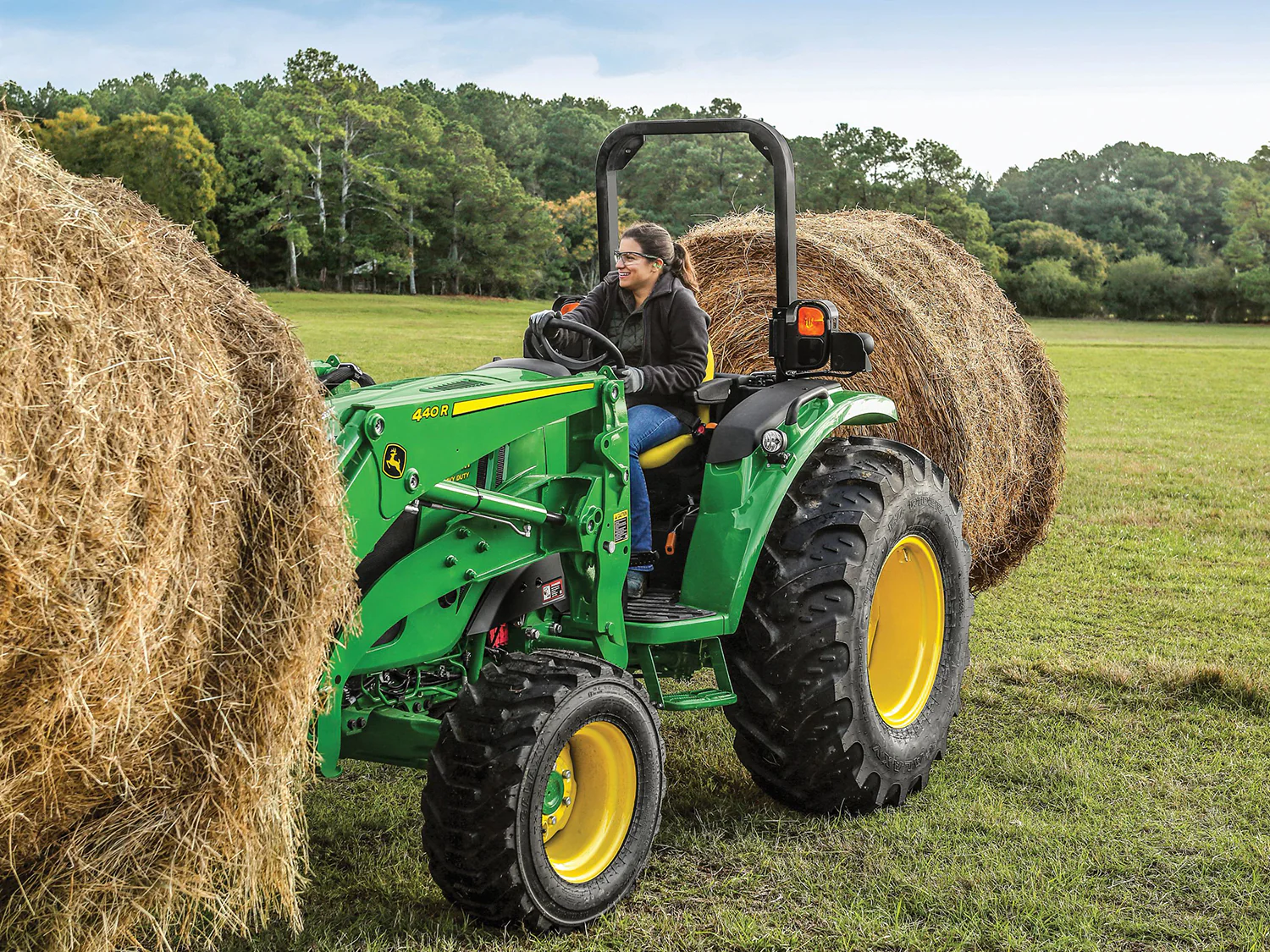

• Front loaders (such as the 440R loader)

• Mid-mounted mower decks

• Rotary brooms and snow blowers

• Front blades and grapples

• Rear PTO implements including flail mowers and rotavators

This flexibility allows the tractor to perform multiple roles throughout the year.

---

Ideal Applications

The John Deere 4052M Compact Utility Tractor is designed for users who require a powerful and versatile compact tractor, including:

• Estate and property maintenance

• Landscaping and groundskeeping

• Loader work and material handling

• Small-scale agricultural tasks

• Turf and pasture management

• Snow removal and winter maintenance

Its balance of power, durability and versatility makes it suitable for both commercial and large-property users.

---

Product Specifications

• Product Type: Compact Utility Tractor

• Model: John Deere 4052M

• Engine Manufacturer: Yanmar

• Engine Type: Turbocharged 4-cylinder diesel

• Engine Displacement: 2.1 L

• Engine Power: 50.8 hp (37.9 kW)

• Rated Engine Speed: 2,600 rpm

• Transmission: PowrReverser™ or eHydro™ transmission

• Drive System: Mechanical front-wheel drive (4WD)

• Hydraulic System: Open-centre

• Total Hydraulic Flow: Approx. 65.8 L/min

• Rear Hitch Type: Category 1 three-point linkage

• Rear Lift Capacity: Approx. 1,135 kg at 610 mm behind link arms

• PTO Type: Independent rear PTO (540 rpm)

• PTO Power: Approx. 39–41 hp

• Wheelbase: Approx. 1,855 mm

• Operating Weight: Approx. 1,710 kg (open station)

• Fuel Tank Capacity: Approx. 49 L

---

Why Choose the John Deere 4052M

The John Deere 4052M Compact Utility Tractor delivers the power and durability required for demanding property and agricultural work. Its turbocharged diesel engine, strong hydraulic system and versatile transmission options make it capable of handling heavy implements while maintaining excellent manoeuvrability.

With compatibility for a wide range of attachments and John Deere’s reputation for reliability, the 4052M provides a highly capable compact tractor solution for professionals, contractors and large property owners who require dependable performance across multiple tasks.
